Could a Leaking Drain Be Contributing to House Movement?

A leaking drain can matter to a building's supporting ground, but finding a defective pipe does not automatically explain the cracks. The investigation needs to connect the defect, the water path, the ground conditions and the observed movement. That connection determines whether drainage repair alone is likely to address the problem.

Water can affect ground in different ways

Leakage can soften susceptible ground, and water can carry soil away. Water entering previously dried clay can also promote swelling. These are different mechanisms, with different implications for the building.

The direction of leakage matters too. A defective pipe can release water into surrounding ground or allow water and soil to enter the drain. "The drain leaks" is a starting point, not a complete explanation of what happens beneath the footing.

Investigate the pipe and the building together

Drain inspections may include CCTV and leakage testing selected by the professional. CCTV can show defects, but the presence of a visible defect is not itself a measurement of the effect on foundation support.

Keep the drain report, footage, pipe location and repair recommendations. Ask the engineer how the defect relates to the damage location and whether further information about the ground or foundations is needed. Separate a blocked drain from a leaking one in your notes.

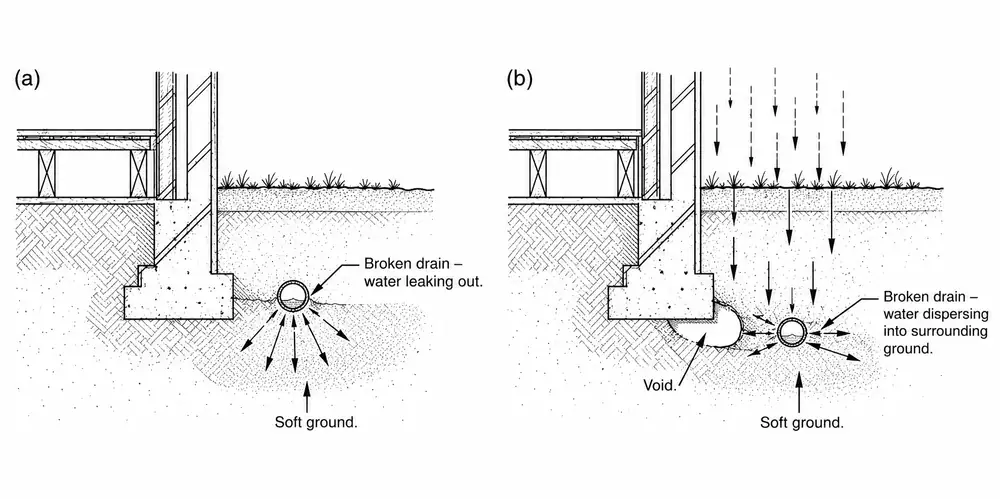

Illustration of a leaking drain and the surrounding ground.

Preserve the timeline before repair

Photograph visible ponding, overflow, damp areas and the building damage before repair where safe. Record when the issue was first noticed and whether crack or door changes occurred at the same time. Repair urgent leakage promptly; do not prolong a damaging condition just to improve a monitoring record.

A hypothetical owner has a cracked wall and a drain defect on the same side of the house. That proximity deserves investigation. It does not establish causation unless the proposed mechanism also fits the ground, foundations, damage pattern and chronology.

A repaired pipe is not the final movement check

Ground affected by leakage may need time to respond after the leak is stopped. Where support has been lost, fixing the pipe may not restore that support. The engineer should advise what follow-up evidence or additional work is needed.

Ask for a clear sequence: drainage findings, completed repairs, movement review and any later building repair. This is more useful than repainting first or assuming that every drainage defect requires underpinning.

Soil entering a pipe and water escaping it

Reported examples distinguish more than one form of pipe-related damage. In an unnamed building case, soil filtered into a sewer through its broken crown, forming a void that later collapsed and damaged the bearing wall. Periodic sewer cleaning was considered likely to have enlarged the developing void; that is an interpretation, not proof of an identical sequence at another property. Separately, a storm-drain example involved a sewer main obstructing the storm drain, with debris further restricting flow during rain. Obstruction, soil loss into a pipe and escaping pressurised water need different evidence.

At the six-storey Wesley Palms Retirement Center, a water-main break was reported overnight on 28 February 1997 beneath an electrical transformer room. The account describes flooding and uplift of floor slabs and concrete flatwork, including uplift away from the break. Because intervening slabs remained undamaged, migration along permeable utility trenches was believed to explain the remote damage. The complete subsurface route and pressure history were not directly demonstrated in the account. This was a pressurised water-main incident, not an ordinary leaking household drain.

The case cautions against treating distance from a known defect as proof that damage is unrelated, while the original defect-to-ground-to-building evidence still has to be established. Ground movement can also damage a pipe, so the sequence must be examined rather than assigned from proximity. Known flooding near electrical equipment or apparent ground collapse requires urgent specialist or emergency response, not entry to collect more evidence. The companion question on engineers' different ground-failure explanations addresses causal direction in more detail.

Useful Next Steps

• Keep the drain location, footage and written findings.
• Photograph relevant surface water and damage from safe positions.
• Record the repair date and exactly what was repaired.
• Ask what would demonstrate that movement has stopped or reduced.
