Trees Near Your House Root Pressure and Soil Drying Explained

Homeowners

Trees can affect structures in more than one way. A growing root may interact directly with paving or a wall, while water uptake can influence shrinkable clay beneath foundations. These mechanisms are different, and a useful investigation should establish which, if either, explains the damage.

Direct pressure is a local interaction

Roots can displace vulnerable paving or small structures as they grow. Photograph visible contact, lifted surfaces, wall deformation and the surrounding arrangement. Showing the tree in the same context image helps the engineer understand the relationship.

Do not assume that a lifted pavement proves the house foundations have moved for the same reason. The pavement and the house may have very different support, loading and ability to accommodate movement.

Soil drying works through moisture

Trees take up water through their roots. In shrinkable clay, moisture removal can reduce soil volume and contribute to foundation movement. The response depends on the soil, roots, moisture history and building, not proximity alone.

Leaf area and crown characteristics matter to water use. Height is not a simple measure of water uptake or root spread. A short, dense tree and a taller sparse tree cannot be compared using height alone.

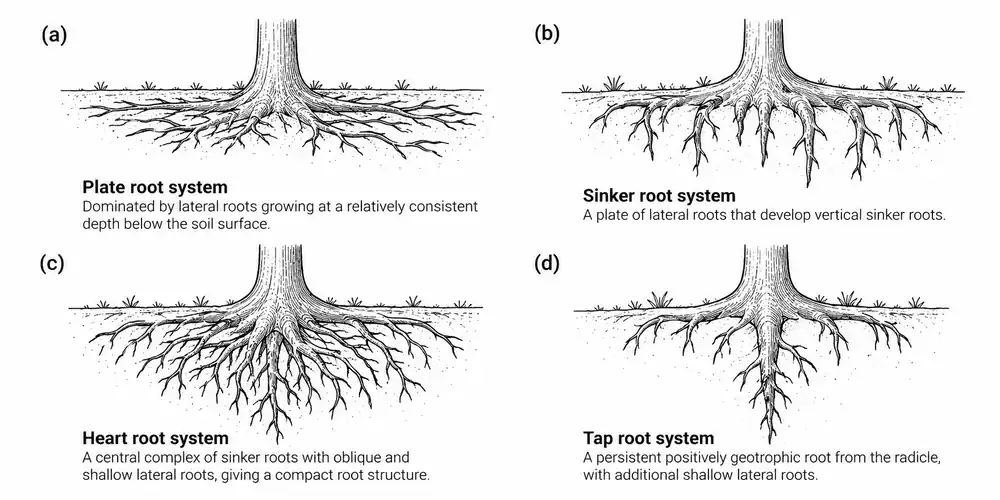

Illustration comparing plate, sinker, heart and tap root systems.
Illustration comparing plate, sinker, heart and tap root systems.
Illustration comparing plate, sinker, heart and tap root systems.

Roots do not follow a neat circle

Root distribution is influenced by soil, water, obstructions, compaction and competition. A diagram of a typical root system is a conceptual illustration, not a map of the roots at your property.

This matters when discussing a tree across a boundary or several trees nearby. Identifying a plausible source requires evidence. Where needed, professionals can investigate and identify roots rather than relying on the nearest visible trunk.

Keep the mechanisms separate in your records

Use factual notes: "paving lifted beside trunk", "crack in boundary wall" or "bedroom crack changes over time". Record tree history and drainage conditions alongside them. Let the investigation test whether a direct interaction or moisture mechanism fits.

Do not cut roots or remove a tree as an experiment. Roots support the tree, and reducing water uptake may change ground conditions. Coordinated engineering and arboricultural advice is the appropriate next step when building damage is suspected.

What ground investigation added in two reported examples

In one road case, subsurface exploration identified a construction detail that gave roots access from a planter into the road base. The asphalt curb arrangement did not separate that base from the planter soil. Growing roots uplifted and cracked the curb and roadway, despite the eucalyptus being relatively young. The explanation depended on the route beneath the pavement and the support conditions, not simply the presence of a large tree nearby.

A reported condominium case involved a thin layer of fill over hard, dense sedimentary rock. Roots grew within the shallow fill because the rock was difficult to penetrate. Pipe leaks beneath the slab provided water, and roots extended under the foundation. Uplift was attributed to root growth where the hard underlying material offered little scope to deform around the enlarging roots. Nor does a nearby leak prove that roots broke the pipe: the condominium account describes water supporting root growth, not a demonstrated sequence of root damage to that pipe.

These cases add two professional questions to the distinction already explained above: what path did the roots actually take, and what could move or deform around them? The presence of roots under a damaged surface is more informative when their position is related to the displaced construction and its supporting layers. It still needs to be assessed with other possible movements and the water history.

Neither case establishes that roots seen near a house caused shrinkable-clay drying beneath its footings. Excavation beside foundations and root management require engineering and arboricultural advice; these are not instructions to expose, cut or remove roots.

Useful Next Steps

  • Photograph direct contact and broader site context separately.
  • Record tree species if known, crown appearance and management dates.
  • Do not use height or distance alone to assign causation.
  • Seek advice before root cutting or tree removal connected with movement.
