How to Photograph Building Damage for an Engineer
Owners, agents and inspectors
A close-up can show a crack clearly while leaving an engineer unable to locate it. Useful photographs answer three questions: where is it, what has cracked and what can be compared later? A short, consistent photo sequence answers those questions better than dozens of unlabelled images.

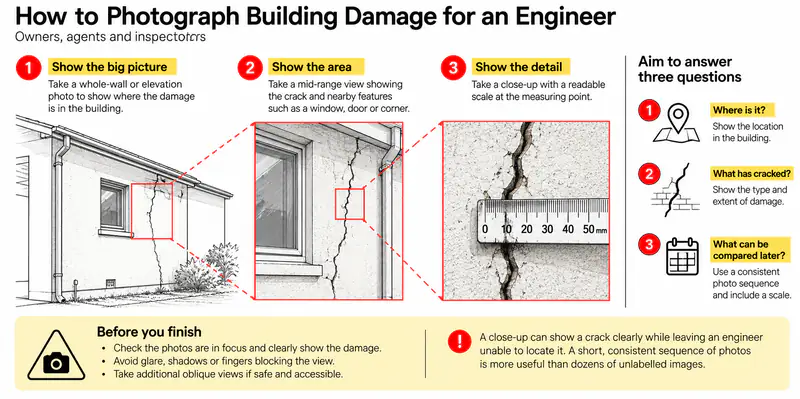

Start with context, then move closer
Take a whole-wall or elevation image, followed by a mid-range view showing the crack and nearby opening or corner. Then take a close-up of the measuring point with a readable scale beside it.
Choose views that let someone move from the room or elevation to the particular mark. A close-up with a readable ruler can still be hard to interpret if every trace of the surrounding wall has disappeared. Additional oblique views can help show separation or distortion when they can be obtained from a safe, accessible position.
Before leaving the accessible area, review the important images at a useful size. Check that the damage is in focus and that glare, shadow or a finger has not hidden it. Keep a poor image if it is the only record of a condition that has since changed, but identify its limitations.
Place the scale without hiding the damage
Keep the ruler or suitable reference in the same plane as the crack where practical. Ensure the scale is readable and does not cover the part being recorded. Record the limits of what the image can resolve.
A ruler photograph is not equivalent to calibrated precision monitoring. Lighting, perspective and surface texture can affect the apparent width. If the width cannot be read reliably, retain the image and report that limitation rather than inventing a decimal measurement.
Give the image a location and a job
Use the same issue label in the photo log, notes and plan. A description such as "kitchen ceiling, beside the laundry doorway" is more useful than "ceiling damage". Pair it with the capture date and the original file name so that a later report caption still leads back to the actual image.
A caption should say what is visible and where it is. "Staining beside the laundry doorway" describes an observation. "Failed roof flashing" adds a cause that the photograph may not establish. If an arrow identifies the area being discussed, keep the mark itself visible.
Repeat the setup
Keep the issue ID, date, camera position and measuring point consistent. Include enough background to relocate the point. If the surface has been filled, painted or obscured, note the change in the register.
A hypothetical pair of images taken at different angles can make a crack seem wider. Before concluding progression, compare the scale, point and image quality. Better repeat photography can clarify uncertainty, but serious associated symptoms still warrant professional attention.
Lighting and framing deserve a note when they differ between visits. A freshly painted surface, a relocated measuring point or a missing contextual view can limit the comparison even when both images are sharp. Retain the dates and describe the difference instead of presenting the pair as a precise change measurement.
Keep originals separate from presentation copies
Keep original files without filters or alterations. Use a separate copy for arrows and labels. The date in a filename and register is useful even when camera metadata is unavailable; do not backdate an image from recollection.
Make crops, arrows and labels on clearly identified copies. Keep the uncropped view linked to each detail crop, and make any brightness adjustment apparent in the working record. Avoid filters, retouching or generated detail that changes what the photograph appears to show. An annotation can point to evidence; it should not create it.
If a sharing copy masks personal information, keep the unaltered original in the appropriate project record and identify the shared copy as edited. Ask the recipient to confirm that the files open and that the issue labels still match the notes. A reduced preview is not a substitute for the retained original.
When the first photographs are missing
State when the available photographs were taken and what had already changed through urgent work, cleaning or repair. A later image cannot be turned into a before-repair photograph by changing its filename.
If urgent work changed the area before photographs were taken, record why it could not wait and retain contractor findings. Evidence collection should not delay necessary safety measures. Send a selected, labelled sequence to the engineer rather than an unsorted camera roll.
