How is house movement monitored and what do the results mean?
Homeowners and property managers following a professional movement-monitoring programme
House movement is monitored through repeated, comparable observations chosen for a defined question. Crack readings, building levels and specialist ground measurements describe different quantities. Their meaning comes from the locations, references, method and time pattern, interpreted with the investigation rather than treated as a result from a device alone.
Decide what the observations need to establish
Monitoring can help test whether continuing foundation movement accounts for damage when the first investigation is inconclusive. It can also help distinguish possible processes by their time pattern, examine whether movement continues or changes rate, and assess the response to remedial action. Those are different questions even when some of the same points are observed.
A series that opens and closes is different evidence from one that keeps changing in a direction, but the shape alone does not identify the cause. The professional still has to relate it to the building, ground and relevant events. Monitoring is useful where the answer can affect the next decision.
It must not become a reason to postpone necessary action. Rapid worsening or apparently unsafe conditions require prompt professional advice and appropriate emergency or utility help, not completion of the planned observation period.
What changes at a crack

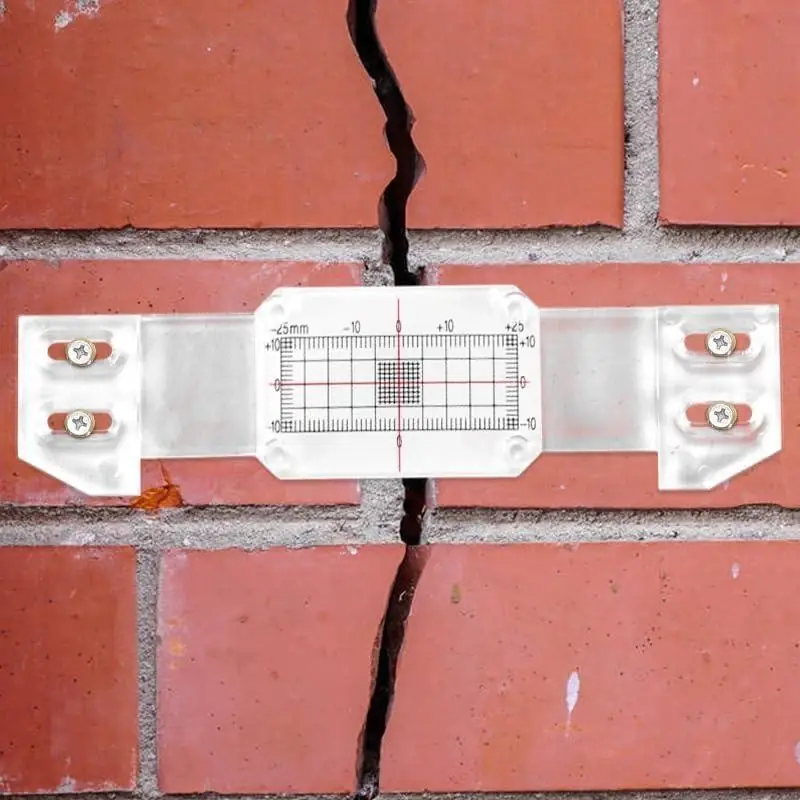

A crack-width record follows the opening at a particular place. A plastic tell-tale uses overlapping parts on opposite sides of the crack so their relative displacement appears against a scale. The photograph shows a plastic tell-tale across a masonry crack. It illustrates a relative movement record, not a current product specification or fitting guide.
A readable display still has limits. Plastic tell-tales can be disturbed and have limited accuracy. Glass strips give little information about the amount of movement and are vulnerable to damage. Do not improvise a glass test.
In the historical Demec example, sensitivity to temperature and moisture changes in masonry and a finite measuring range can complicate interpretation. A change of instrument contact or reference point can also affect comparability. Keep the method and any interruption with the reading, rather than the displayed number alone.
Levels follow a different quantity
Level monitoring follows vertical changes at selected building points relative to a reference. It can disclose movement that produces no discernible change at a particular crack. Conversely, expansion and contraction within a wall can change an existing crack without further foundation movement. The two records are not interchangeable.
Point locations and the reference are therefore part of the result. A line rising or falling on a chart needs its measurement context before it is read as a physical account of the house. A plotted zero alone does not establish the building's original level or demonstrate that the reference is stable.
After work intended to address a movement influence, repeated levels may help assess the response. The intervention date is useful context, but a change after that date is not, on its own, proof of cause or success.
Sideways movement needs its own scope
Crack opening and vertical levels do not automatically measure sideways movement in the surrounding ground. Where landslip is suspected, specialist ground measurements may be more conclusive than observations on the structure. The important owner question is whether the commissioned evidence covers the relevant direction and place, not how to install or operate an instrument.
The observation period follows the question
A short sequence may show only part of a recurring pattern. The method also affects what can be established: crack observations and controlled level measurements need not provide the same information over the same period. The review plan should explain what pattern or uncertainty is being examined, rather than apply one waiting period to every house.
Unfavourable results call for reassessment of the explanation and options. They do not automatically select underpinning, just as an apparently quiet period does not certify the whole building as safe. Monitoring needs interpretation and a review point, not an indefinite accumulation of readings.
Keep the record useful through change and repair
Keep dates, point locations, the measured quantity, units, instrument and reference with the observations. Record uncertain or missed readings and changes caused by repairs or disturbed points. Relevant work and environmental events should remain context, rather than be entered as established causes.
A ruler record can describe a crack's visible condition, but relocating the point and reading irregular edges can make comparisons uncertain. Magnified observations and measurements between fixed points serve a different level of enquiry from an ordinary photograph.
Repairs can change what remains observable. Filling or rebuilding the damaged area may remove the original crack-monitoring opportunity, while suitable level monitoring can sometimes continue. The professional should explain how the chosen record will answer the remaining question after the work, and identify any break between the earlier and later series.
