A Repeatable Crack Record How to Keep Measurements Comparable

A crack log is useful when another person can understand exactly what was measured and repeat it. A list of dates and widths is not enough if the measuring position changes each time. Consistent points, clear photographs and honest reporting of measurement uncertainty turn isolated observations into evidence of a trend.

Separate the crack from the measuring point

Give the whole crack an identifier, then define the point where each measurement will be made. One crack may need more than one measuring point if its width varies or it branches. Record those points as C01-A and C01-B, or use another simple naming system. Put them on a sketch and photograph nearby permanent features that allow you to return to the same location.

Record the position of each crack-width measurement. This matters because a tapered crack has different widths along its length. Moving from a narrow location to a wide one can create an apparent increase even if no change has occurred. If the crack extends or develops a branch, keep the existing point and add a new observation.

Match the method to the question

A ruler or comparison card beside a crack can help document a visible condition. It may not resolve the small changes that a professional investigation needs to distinguish. Surface irregularities, perspective, lighting and the thickness of the printed scale can all affect what is readable. Report the tool used and avoid adding decimal places that the method cannot support.

Instrumented monitoring can use fixed markers and calibrated gauges or digital callipers. The accuracy of a controlled monitoring method should not be assumed for an ordinary phone photograph. Ask the engineer what resolution and equipment the investigation needs before buying a device or installing a gauge.

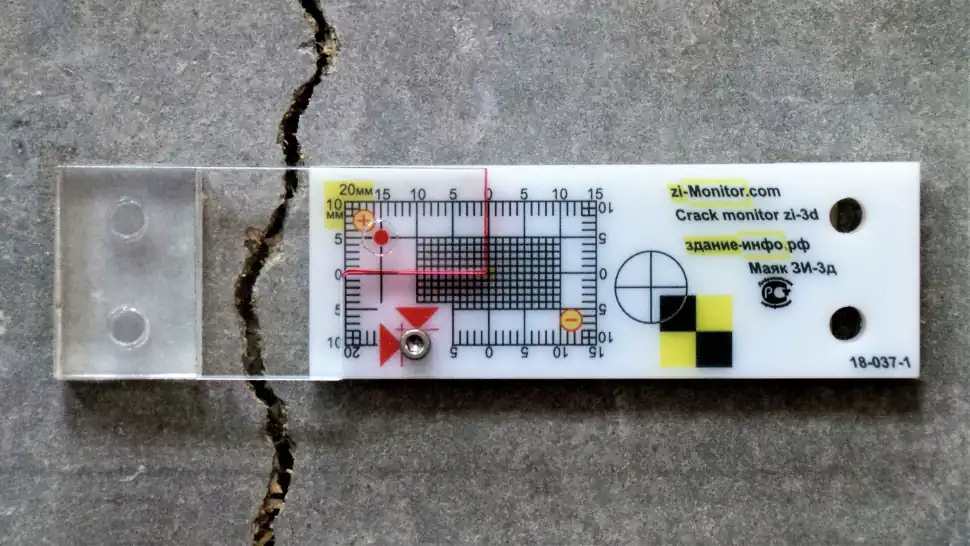

A crack-monitoring gauge spanning a crack in a concrete surface.

Keep a record that can be audited

Each entry should include the date, crack ID, measuring-point ID, reading, units, tool and photograph reference. Note whether the surface was repaired, painted, obscured or inaccessible. Record missed readings as missed rather than filling them in later. Keep original photographs alongside any annotated copies.

For an illustrative example, suppose a homeowner records one point as 'about 2 mm' with a small ruler and later photographs another point that appears wider. The comparison does not establish progression. The useful correction is to define a fixed position and repeat the method, while arranging professional review if other symptoms suggest change. Uncertainty is information worth recording.

Compare the pattern rather than one result

Distinguish progressive movement from seasonal movement, and monitor for a defined purpose and period. A crack may open and close through a cycle, or continue changing in one direction. A trend should therefore be considered with its dates, measurement quality and other evidence, not reduced to a single difference between two photographs.

Ask the engineer to set the monitoring interval and review point when an investigation is underway. An unexpected change, new distortion or loss of function may warrant an earlier review. Monitoring should answer a specific question; it should not become a reason to postpone an assessment when the property is changing.

Useful Next Steps

• Map and name each measuring point before the second reading.
• Use the same method and record the tool's limitations.
• Keep readings, photographs and surface changes in one chronological log.
• Ask for a review when the pattern changes or the readings cannot be interpreted reliably.

A simple, consistent record is more valuable than an impressive-looking spreadsheet containing incomparable measurements. Make it easy for the next person to check how each reading was obtained.
