How to Make a Crack Map an Engineer Can Use

Use an existing floor plan or simple sketch, label rooms, storeys and elevations, and mark each crack with a stable issue ID. Link that ID to photographs and readings, identify repeat measuring points separately, and keep dated versions when conditions change. Mark approximate information honestly; the map locates observations rather than establishing their cause.

A crack map connects photographs and readings to the building. It does not need to be a measured architectural drawing. Its purpose is to let another person find the same issue, understand nearby features and compare the records without relying on your memory.

Use a plan that is easy to follow

Start with an existing floor plan or a simple sketch. Label rooms, entrances, storeys and an orientation reference. For exterior damage, identify the elevation and show the relevant wall or boundary structure separately.

Do not invent dimensions to make the sketch look professional. Mark it as approximate where necessary. A clear, honest location map is more useful than a polished drawing that suggests accuracy it does not have.

Give each issue a stable identity

Use a short identifier such as C01 for a crack or G01 for a gap. Put the same identifier on the map, photograph register and measurement log. If there are several cracks near one window, distinguish them rather than calling all of them "window crack".

Record the material and exact location. "Bedroom, wall above left window corner" is more useful than "front room". The record should include significant crack locations and dimensions, with the positions where widths are measured.

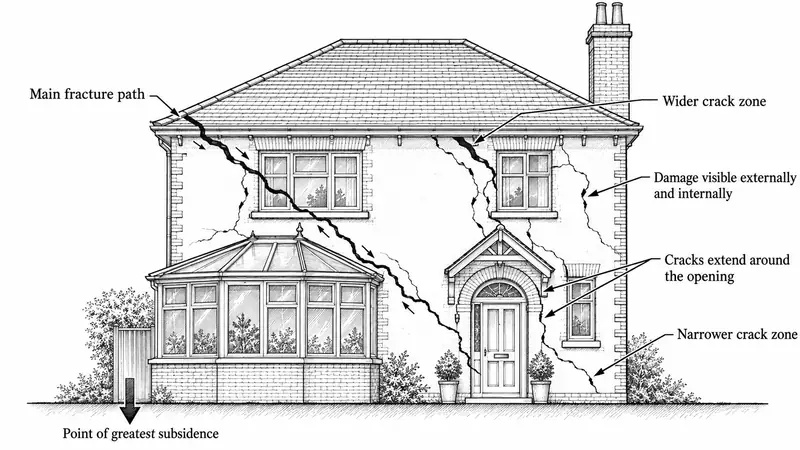

Illustration of connected cracking patterns around a house and its openings.

Map measuring points within the issue

A crack may need more than one monitoring point. Name them C01-A and C01-B and describe their positions using features that can be found again. Photograph the point and its surrounding reference feature.

For a hypothetical diagonal crack, one point may be near the window corner and another near the ceiling. Keeping them separate prevents a later reading at the wider point from being mistaken for growth at the original point.

Keep supporting symptoms connected

Mark related door problems, floor observations and visible drainage conditions. These are separate observations, not proof that they share a cause. Their location helps an engineer assess whether a coherent pattern exists.

Date the map and preserve earlier versions when damage is repaired or new issues appear. Keep the original image files as well as annotated copies. If a location becomes inaccessible, record that limitation rather than removing it from the history.

Useful Next Steps

• Label rooms, storeys and exterior elevations clearly.
• Use the same issue IDs across every record.
• Identify each repeat measurement point separately.
• Keep dated map versions when conditions change.
