What Can a Survey Tell You About Uneven Floors and Walls?
Homeowners and home buyers
An uneven floor or wall out of alignment is a reason to record the condition and ask what it means. A survey can describe the shape of a building accurately, but a single set of levels does not date the movement or establish its cause. Construction history and repeat measurements can be essential to interpretation.
Separate a symptom from a survey result
Homeowners can describe a noticeable slope, a gap at skirting, a change between rooms or a wall that appears distorted. Give each symptom a location and record whether it is new or longstanding. A household spirit level is an observation aid, not a substitute for a building survey.
Timber floors can sag for reasons unrelated to subsidence, and old floors may have been relevelled. Concrete floors can have their own support or material problems. The visible floor surface does not necessarily follow the foundation movement directly.
Understand what relative levels show

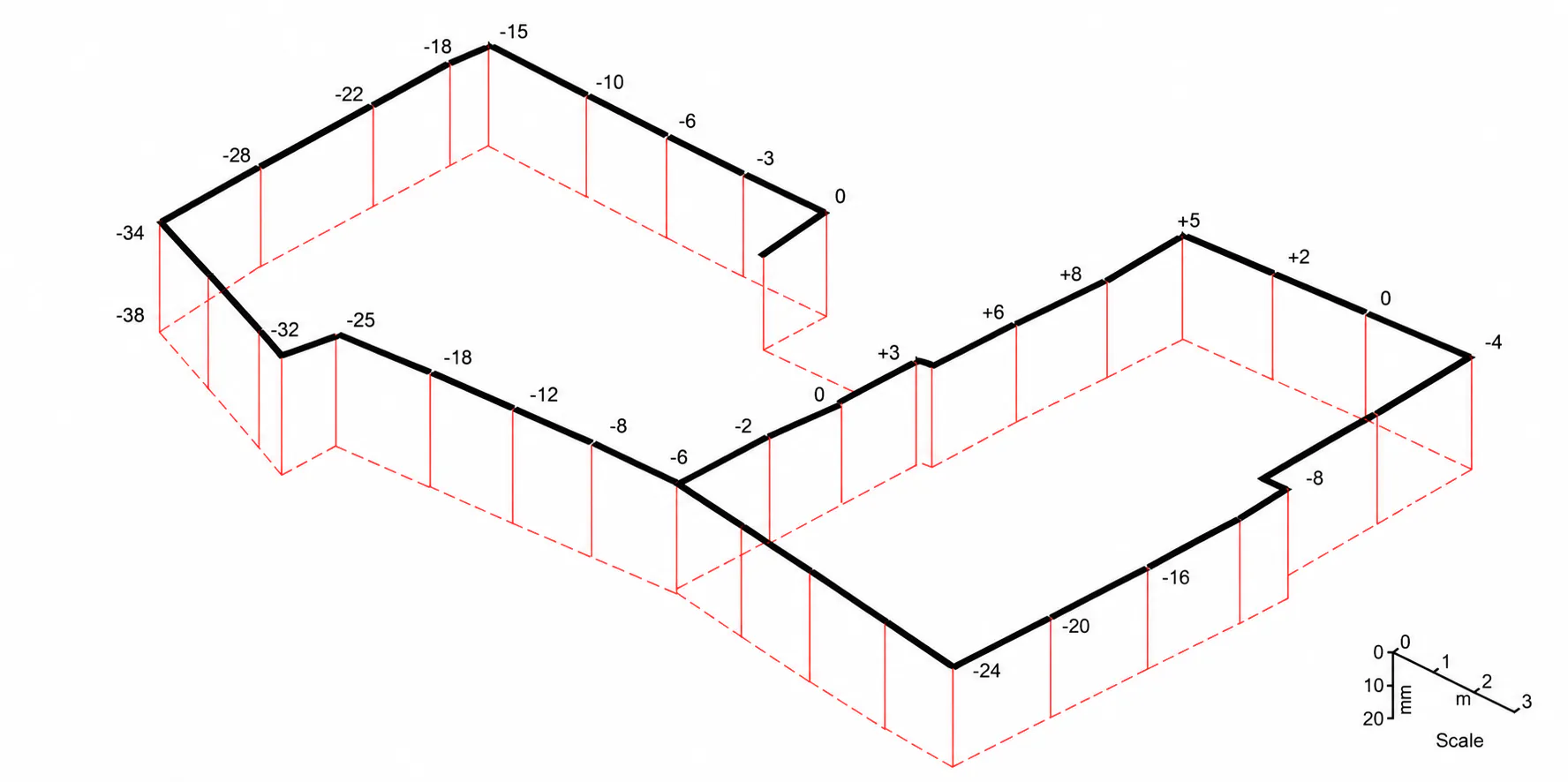

A distortion survey records differences from a chosen reference or datum. Results can be illustrated on a plan and an isometric view. The pattern can help identify where levels differ and where an investigation should concentrate.
The datum is part of the measurement system. A number such as a negative relative level is not automatically an amount of recent settlement. Distortion may be historic or a legacy of original construction, which is why survey interpretation requires experience.
Wall alignment adds another dimension
Floor levels alone do not describe wall lean or bow. A verticality survey uses instruments appropriate to the full height of a wall. An engineer may combine these observations with crack patterns and the construction details.
Do not approach or lean on a wall that appears unstable to take a measurement. A clearly distorted wall, especially with loose masonry or recent change, warrants professional attention. The purpose of a record is to support that assessment safely.
Ask whether repeat monitoring is needed
If the question is whether the building is moving now, an engineer may recommend repeating controlled readings. That requires reliable markers, a suitable datum and comparable methods. A second survey performed differently may not answer the question.
Ask the surveyor to explain the results, assumptions and limitations in plain language. Useful reporting links the measured shape to other evidence and identifies what remains uncertain rather than presenting an unexplained maximum difference.
Useful Next Steps
- Describe where the slope or distortion is noticed.
- Keep previous floor repairs and re-levelling records.
- Ask what datum and assumptions a survey uses.
- Distinguish existing distortion from evidence of continuing movement.
