Why does roof drainage need an overflow route as well as gutters and downpipes?
Homeowners builders and property managers
Roof drainage needs somewhere for water to go when the normal system cannot carry it. That overflow route should keep water from entering or damaging the building. Clean gutters and apparently adequate downpipes do not, by themselves, establish that the overflow arrangement is suitable.
For a drainage plan addressing runoff and water around your property, explore our stormwater and site drainage design. An article cannot determine the cause or appropriate solution for an individual property.
Normal eaves drainage and overflow are different design questions, considering both heavy rainfall and blocked drainage. The ordinary system cannot be assumed to remove every exceptional storm without overflowing.
Trace the normal route and the overflow route
Under normal conditions, rainwater reaches a gutter, flows to the downpipe and continues to the intended discharge arrangement. If that route is overwhelmed or blocked, another path becomes important. Water should not simply back up against a wall or enter the house.
For a practical review, ask the practitioner to identify both routes on the actual roof. A photograph of a downpipe opening may say little about water levels elsewhere in a long gutter or where overflow will land.
Stormwater drainage also needs to address heavy-rain overflow returning into the building. A functioning roof edge is therefore only part of the complete drainage question.
Bigger-looking gutters do not explain usable capacity
Gutter selection depends on rainfall design conditions, the roof catchment served and the downpipe arrangement. Effective area measures the usable cross-section only to the relevant lowest overflow level. It is not necessarily the full visible depth to the rim.
That distinction matters when comparing replacement products. Ask for the proposed system's design basis and product specification. A deeper profile, unchanged downpipe and altered overflow level are not automatically an improvement as a combined system.
Downpipe location can matter as much as the count
Insufficient and poorly located downpipes are frequent causes of poor roof-drainage performance, including concentrated flow near valleys. Adding a pipe somewhere convenient may leave the original concentration unresolved.
Record which roof areas feed the affected gutter and where overflow occurs. If the observation was made during rain, note the date and conditions without estimating a design rainfall intensity from memory. Do not climb onto a wet roof or stand below unstable building components to obtain evidence.

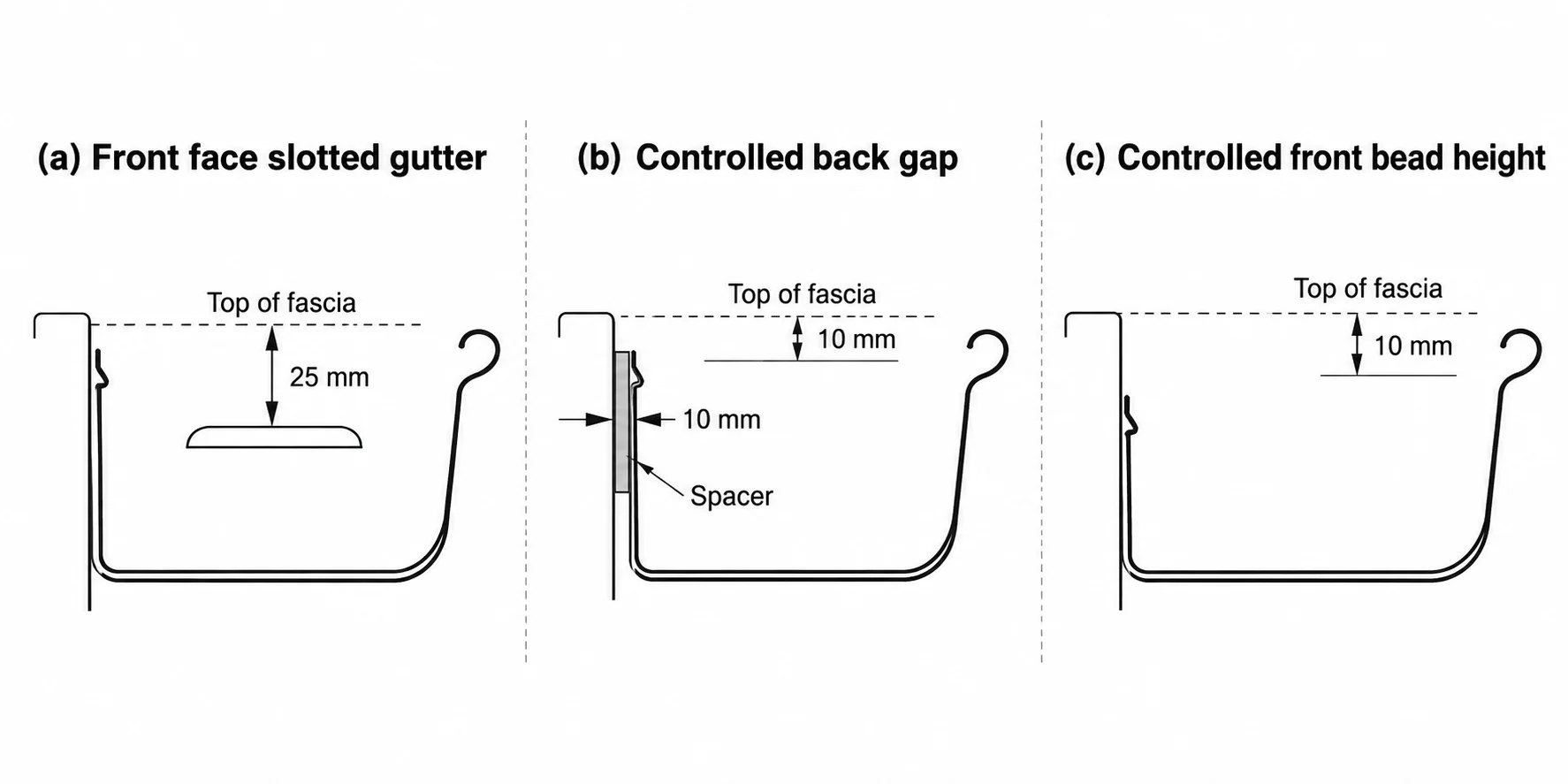

Continuous and dedicated overflow measures work differently
Continuous measures act along a gutter; dedicated measures are associated with individual downpipes. Their stated capacities use different units and depend on particular geometry and levels. A slot, gap, weir or rainhead cannot be judged solely by its name.
The capacities for continuous measures are per metre of gutter, not per downpipe. Geometry and levels are linked conditions, not a gutter-modification or sizing guide.
An end-stop weir is not suitable where the end-stop abuts a wall. Nozzle location, geometry and levels are linked conditions. Dedicated capacities are per downpipe, not per metre; these are not owner modification instructions.
The rainhead detail concerns an outward-face hole with its centreline measured below the fascia, avoiding nuisance overflow below normal design rainfall. Geometry and capacity remain conditional; this is not a sizing or installation method.
The practical question for the designer is whether the chosen measure provides the required overflow for the actual catchment and discharges it appropriately. This article does not reproduce a slot-cutting, gutter-modification or sizing method.
Check what happens on the lower roof
Overflow from an upper roof may add water to a lower roof that already has its own catchment. The total overflow capacity and weatherproofing of the receiving area need consideration. Moving water away from the upper gutter can therefore leave a problem elsewhere if the downstream route is ignored.
The same context helps explain why an attached garage is not automatically outside the house's drainage problem. Consider whether garage run-off affects the dwelling. A detached building's different circumstances should not be turned into a blanket exemption.
What to ask before work is agreed
Provide safely taken context photographs of the affected gutter, outlet, lower roof or wall, with the rain history and previous work. Distinguish observed overflow from a suspected buried blockage. Record whether water ponded near the building or appeared inside, without deciding the cause yourself.
Ask which part of the route the proposal changes, how overflow will be handled and whether the receiving roof or ground drainage has been checked. A useful completed-work record should identify the actual products and arrangement, rather than saying only that the gutter was replaced.
