What Should You Record About Balcony Leaks, Ponding and Deck Damage?
Homeowners and property managers
For a balcony concern, separate water entering the building from water remaining on the surface, deposits below it and damage to timber or overhead linings. Advisory tolerance comparisons distinguish these conditions; the applicable project requirements still need confirmation. A single photograph of the worst patch rarely records all of them.
For an assessment of recurring leaks or other building defects, explore our building defects inspections. An article cannot determine the cause or appropriate solution for an individual property.
Follow the observed water
The advisory comparison treats a waterproof deck or balcony that leaks under normal environmental conditions as outside tolerance. It separately addresses wind-driven water entering the building under normal environmental conditions. Record when water appeared, where it first became visible and the weather you actually observed. Keep an uncertain entry point uncertain.
For waterproof decks and balconies, ponding or failure to drain to the outer edge or a stormwater inlet is outside tolerance, except for residual water remaining because of surface tension. Where the deck or balcony is required to be waterproof, the comparison also calls for adequate drainage and provision for overflow. An outlet and an overflow therefore deserve separate entries in the record.
Use observations from ordinary rainfall rather than creating a flooding test. Show the wider surface and the water's location in available photographs, and note when they were taken. A photograph can record water remaining at that moment without establishing the drainage arrangement beneath the finish.
What the overflow detail can add

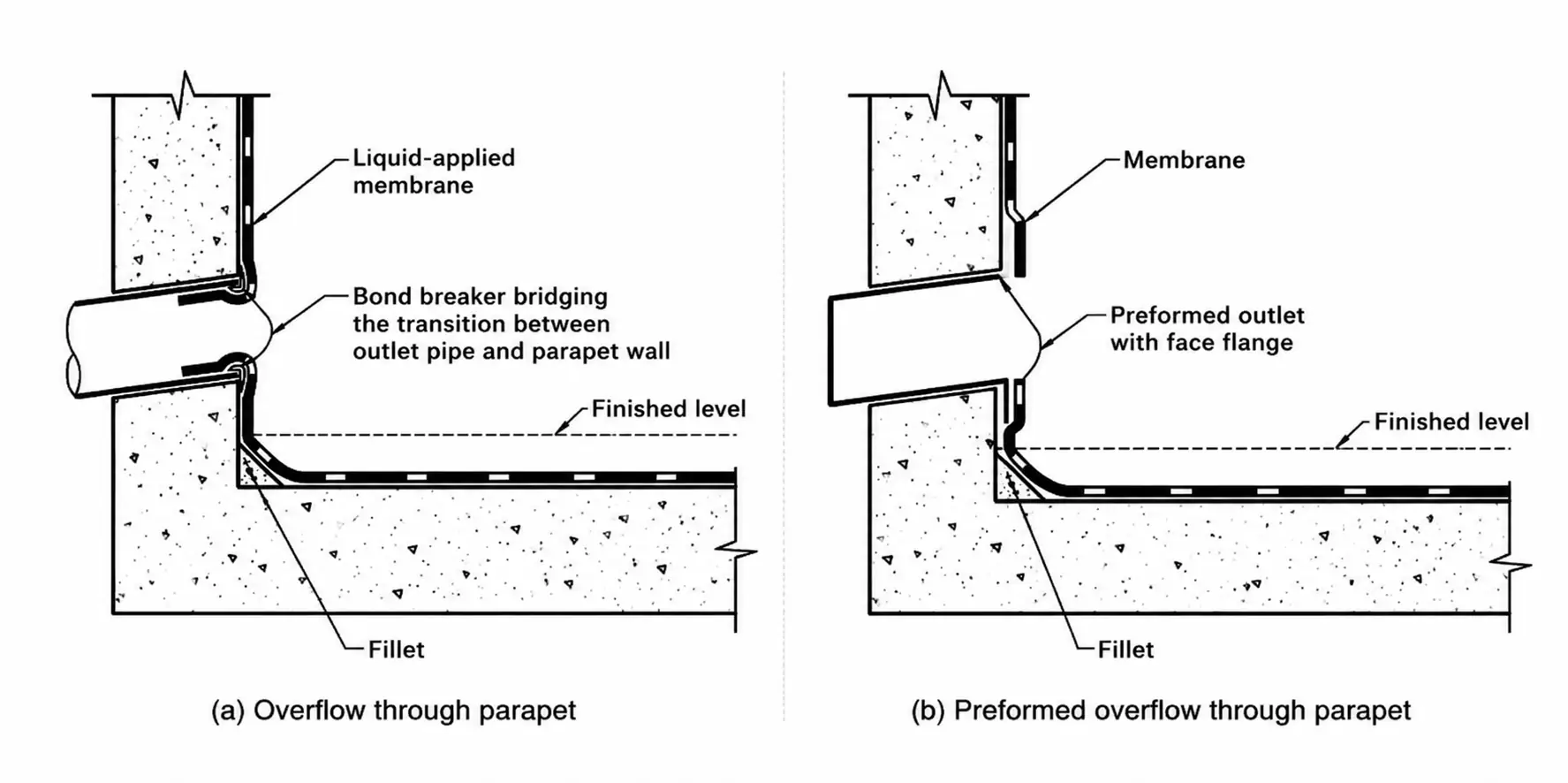

The overflow examples add questions about the concealed membrane and finished surface. Turning the membrane into the overflow helps prevent water tracking behind it; an alternative arrangement uses a preformed outlet with a flange. That flange condition matters: an ordinary opening is not automatically the illustrated alternative. Check the actual approved detail rather than deciding from whether a turn-in is visible.
The preformed alternative depends on an outlet with a face flange; it is not permission to omit the membrane connection at an ordinary opening. The finished level must not reduce the outlet design flow. These Class 2, 3 and 9c examples are not installation or retrofit instructions for another building.
The finished floor level must not reduce the outlet's design flow. Keep any resurfacing or finish-change records with the drainage photographs, and ask the professional how the outlet and overflow relate to the completed surface. Seeing an opening does not establish its capacity or the condition of its membrane connection.
Distinguish drainage at the finished surface from falls formed in the structural substrate or a screed, retaining the residual-water exception for surface tension. A photograph of water on the finish cannot identify which concealed layer or interface needs investigation.
Use these NSW examples to frame an enquiry, not to impose one standard detail on every balcony. These illustrations concern Class 2, 3 and 9c buildings; the applicable project design and requirements still need checking. Give the professional the original photographs, the dates of known finish changes and any drain or overflow drawings alongside the water record.
White deposits need their own enquiry
The deposit provision concerns calcification or efflorescence caused by water coming from the deck or balcony, appearing on adjacent walls below or beside it, or in the mortar joints of its tiling. The water-source condition matters. A white patch alone does not establish it. Ask the building or waterproofing professional what connects the deposit to water from that deck or balcony.
Keep tile condition alongside the water record. The advisory comparison allows for textured wet-area tiles retaining residual water through surface tension, while cracked, pitted, chipped, scratched or loose tiles at completion have their own provision. The companion article on tile workmanship deals with that finish assessment; roof drainage is also a separate subject.
Timber and overhead linings have different conditions
External timber that splits, bows or cups within the first three months from completion, under normal environmental conditions, is outside the advisory tolerance discussed here. Keep the completion date with the observation rather than treating every later timber change as the same time-based question.
External plaster and lightweight sheeting on eaves, verandahs and similar areas are treated separately: becoming loose in the first 12 months from completion, or installation contrary to the manufacturer's instructions, is outside tolerance. Keep clear of loose overhead material and seek prompt professional advice, with emergency help where there is an immediate threat.
Timber-decking splits extending to an end or side edge are outside tolerance if they result from the fixing method. That condition needs to be established; the split's appearance alone does not identify the fixing cause. Supply safely obtained photographs and available installation records without pressing boards, removing fixings or opening the deck to investigate.
