Why Can Water Enter Walls Even When the Outside Looks Sound?

An outer wall finish is only part of the building's water-management system. Water may enter at a joint or opening, pass through a porous finish, or reach a concealed layer that should direct it out again. An apparently intact facade therefore does not establish that the wall's drainage and drying arrangements are working.

For an assessment of recurring leaks or other building defects, explore our building defects inspections. An article cannot determine the cause or appropriate solution for an individual property.

Look for the route rather than one visible gap

Liquid water, capillary movement, air movement and vapour transmission can carry moisture through a wall. The mechanism needs to fit the observations: the wet patch locates an effect, but does not by itself explain where water entered or how it travelled.

Locate the internal damage against the external elevation and the levels above it. Record when water appears, wind and rain conditions, earlier repairs, alterations and nearby roof runoff. Compare affected and apparently unaffected areas where useful. Keep observations separate from an assumed cause, especially where finishes conceal the underlying detail.

Understand the four water-management functions

Water management involves deflection, drainage, drying and durability. Deflection reduces how much water reaches vulnerable areas. Drainage provides a route out for water that does enter. Drying concerns how retained moisture can leave the assembly. Durability concerns how the materials respond to their conditions.

Those functions depend on the wall's construction, climate and exposure. Overhangs, gutters, openings and roof-wall junctions affect where runoff arrives. The layers behind the finish affect where it then travels. Adding a vent or a vapour-control layer requires assessment of that particular assembly.

Identify the actual cladding and drainage plane

Brick veneer, adhered stone, render or stucco systems, external insulation finishes and sheet or board cladding do not have identical support and water-management arrangements. Establish what is installed before choosing a detail to investigate. A visually similar exterior can conceal a different assembly.

Where a water-resistive layer and flashing form a drainage route, continuity at laps, corners, openings and terminations matters. A visible fragment of wrap cannot establish that the whole route is continuous. In a reported case, substantial framing damage was discovered behind stucco and timber trim despite no previously noticed internal water damage.

Follow the brick cavity through higher interruptions

In the brick-veneer arrangements discussed here, some water can penetrate the outer masonry. Follow its route through the cavity to the flashing and outlet, including interruptions at supports or openings. Visible weeps cannot establish that hidden flashing is continuous or that veneer ties and support are adequate.

Record the position of visible outlets, blockage and their relationship to adjacent ground or paving. Mortar droppings may obstruct an outlet or bridge a cavity. Their absence at one visible location does not clear the concealed cavity elsewhere. Boroscope examination or opening-up, where justified, is specialist work rather than an owner check.

Connect the flashing to the outlet and external surface

These drainage examples concern Class 2, 3 and 9c buildings in NSW; their application to another building requires professional confirmation. For cavity masonry, the useful question is whether water collected within the wall has a continuous route to the outside, including past the adjoining external finishes.

Flashing projections direct moisture out of the masonry; their size and orientation affect that route. In these arrangements, weephole drainage points sit immediately above the flashing. Consider the flashing, cavity and outlets together: a hole visible in the face is only one part of that arrangement. Its appearance cannot confirm the concealed flashing or reveal every interruption along the route.

The external finished level beside the outlet is the reference in this obstruction example. Where the outlet bottom lies below that surface, the outside finish obstructs drainage. The internal room floor does not give a general reference for this comparison. Later paving or added finishes can change the relationship. A tidy external surface may still leave the drainage route obstructed.

Keep dated contextual photographs showing the outlets and adjacent surface, together with records of paving or landscaping changes. Earlier views may show whether the surface level changed. An opening hidden by a later finish and an opening never installed have different histories. Leave that distinction unresolved if the records do not establish it; do not drill new holes or alter the wall to investigate.

In a reported kitchen-pantry case, base flashing and weeps were present, but a concrete cap above the brick sloped towards a corner with vinyl siding. Flashing was absent beneath the cap, and mortar droppings partly obstructed the cavity. Testing at the corner reproduced water entry into the pantry. The base outlets did not resolve the higher entry route.

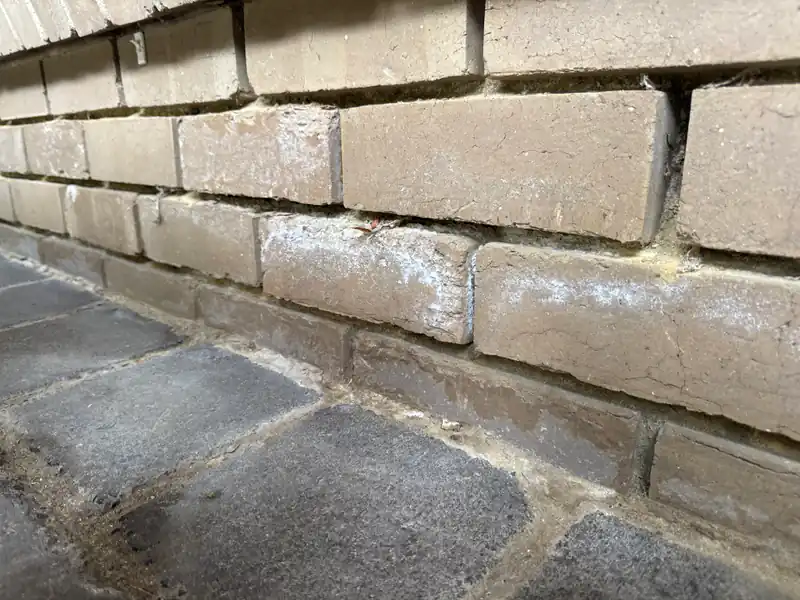

Open joints and surface deposits in masonry.

The historical US example discusses the integration of flashing and outlets, not an Australian compliance detail.

What the clogged-gutter case actually established

In a reported clogged-gutter case, the brick beside and below the gutter was reported wet after rain. Investigators found debris at the downpipe inlet, soil washout below and no visible weeps above ground level. Testing that simulated gutter overflow reproduced water entry at the top of the basement foundation wall. Missing concealed flashing was suspected, but opening-up was needed to verify it.

The case connects gutter overflow, a wall drainage problem and water entering the basement. Gutter maintenance would have reduced the water reaching the wall, but would not have established the condition of its concealed flashing. A missing visible weep is a reason to investigate, not proof of every hidden detail.

Record the supported route and unresolved detail

A useful report locates the damage, describes the known wall assembly, identifies a supported water route and states what remains concealed or untested. Controlled testing should address a specific hypothesis and report its conditions and limitations. Photographs of an opening need to remain connected to the elevation and internal room.

For an owner or agent, preserve the first observations, original images, weather context and repair records. Do not seal outlets, drill the wall, remove cladding or carry out a water test to investigate it yourself. If loose masonry, instability or water near services presents an immediate concern, seek the appropriate professional or emergency help.

Damp proof courses and flashings do different jobs

In the masonry arrangements discussed here, a damp-proof course forms a barrier through the masonry. Flashings collect or redirect water at relevant junctions and discharge locations. A flashing passing through the entire masonry leaf may also serve as a DPC. The names can overlap in one detail, but seeing one strip at one location does not verify the complete water route.

Consider continuity where levels change, at laps and around corners or openings. Materials exposed to weather also differ from those protected within the construction. Metal compatibility matters where metals contact one another or receive runoff from each other. These are questions for the specified assembly, not a reason to substitute a convenient membrane or metal.

The material restrictions discussed here exclude lead flashings on a roof forming part of a potable-water catchment and exclude combining lead with zinc-aluminium alloy. Applicable project specifications need professional confirmation. These are material-specification questions for competent review, including contact and runoff relationships. Do not scrape, test or remove existing flashing to identify a material yourself.

Openings roof abutments and chimneys need their own details

Sill and head flashings should shed water towards the exposed skin, paying particular attention to their ends. Sill-weephole and local flashing-omission provisions depend on the actual opening and shelter arrangement. A missing visible outlet at one sill is not a general reason to omit drainage elsewhere, or proof of a defect without checking the relevant detail.

At an inclined roof-to-wall junction, distinguish through-flashing, stepped cavity trays and soaker flashing. The simplified overview drawings omit DPC between trays for clarity; the detailed alternatives maintain damp-proofing continuity in different ways. The overview is not a complete construction detail, and not every tray alternative uses a separate DPC in the same way.

For a chimney, distinguish a tray within the stack from flashing between its external face and the roof surface. An assessor should establish both parts of that route rather than infer the concealed arrangement from a surface seal. These are investigation questions, not a tray, lap or weephole installation recipe.

Finished ground levels need their conditions

The veneer detail discussed here has different minimum DPC heights for different finished external conditions: 150 mm above adjacent finished ground; 75 mm above finished paved, concrete or landscaped areas sloping away; or 50 mm above those sloping-away areas where they are also protected from direct weather by a carport, veranda or similar cover. The conditions belong with the dimensions. The smallest value is not a general allowance beside every wall.

The DPC also needs to remain visible after coatings, with additional termite-management provisions considered. These dimensions explain what information matters; they are not a retrospective compliance verdict about an existing house or a substitute for confirming the applicable construction detail.

Photograph the relationship without altering it

Show the external finished surface, any visible DPC and the drainage outlet in the same view. Label uncertain features as uncertain: a mortar joint is not automatically the DPC. Add dates of later paving, render, garden-bed work and observed water entry.

A raised surface can affect access to an outlet or obscure a previously visible feature, but the photograph alone does not establish the full concealed route. Ask the assessor to distinguish the source of incoming water, barrier continuity and discharge conditions. Do not excavate against footings, drill extra weepholes or seal a gap simply to match a generic diagram.
